Discontinued
4K HDMI Output Board
25G‑8HDMI2‑OB provides fully transparent HDMI 1.4 connectivity to the latest high‑end digital sources including 3D between the endpoints.
Professional Universal Matrix Switcher
UMX4x4-Pro2, the all-round Universal Matrix Switcher, is the perfect solution for dynamic environments such as small board rooms and classrooms. UMX (Universal MatriX) technology was recently developed by Lightware to support various analog and digital audio visual formats. VGA, YUV, digital DVI, HDMI 1.3 with HDCP, stereo analogue and S/PDIF digital audio signals are all supported.
DVI-I Input Board
MX‑DVII‑HDCP‑IB is an all‑around Input Board which was designed to handle analog VGA, YUV, digital DVI and HDMI 1.3 video signals with HDCP compliancy.
4K Singlemode Optical Input Board
25G‑8OPTS2‑IB‑LC is a 4K compatible fiber optical input board for the 25G router family. These optical boards can extend up to 10.000m distance with singlemode fiber technology. The OPTS technology provides a transparent medium for all existing video, audio and control signal formats according to the 25G multilayer architecture (Video, Audio, Ethernet,USB KVM, RS‑232, IR and CEC transmission), and allows the extension from MODEX transmitter units.
4K Singlemode Optical Output Board
25G‑8OPTS2‑OB‑SC is a 4K compatible fiber optical output board for the 25G matrix family. These optical boards can extend up to a 10,000m distance using singlemode fiber technology. The OPTS technology provides a transparent medium for video, audio, Ethernet, USB KVM, RS‑232, IR and CEC data according to the 25G multilayer architecture and allows the extension
to MODEX receiver units.
25G 4K DVI-D Single-Link Input Board with Analog Audio
25G‑8DVID2‑IB provides fully transparent HDMI 1.4 connectivity to the latest high‑end digital sources including 3D between the endpoints.
25G Hybrid Matrix Frame with 160x160 Crosspoint
The 25G frames can transmit video signals up to 4K resolution, support all 3D formats, handle forward audio, transmit USB‑KVM, Ethernet, bi‑directional RS‑232/RS‑422, IR and CEC signals. The intuitive graphical user interface offers easy and user‑friendly control accessing all available features. Advanced EDID Management is included in the frame which is also HDCP compliant.

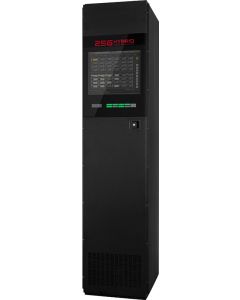

25G Hybrid Matrix Frame with 144x144 Crosspoint
The 25G frames can transmit video signals up to 4K resolution, support all 3D formats, handle forward audio, transmit USB‑KVM, Ethernet, bi‑directional RS‑232/RS‑422, IR and CEC signals. The intuitive graphical user interface offers easy and user‑friendly control accessing all available features. Advanced EDID Management is included in the frame which is also HDCP compliant.

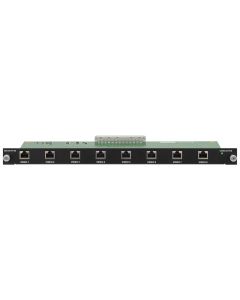

Twisted Pair Input board for DVI over CAT5...CAT7 cables
MX-DVI-TP-IB+ Input board has 8 dual Twisted Pair Input channels accepting DVI-D signals. Each Input port incorporates two RJ45 connectors that have built-in Cable Extender and an individual EDID Manager for setting EDID information and keeping sources continuously active. Using a supplied external 12 Volt DC power supply, this board is able to remotely power the connected compatible TP transmitters such as the DVI-HDCP-TP-TX50.
Pro Series DVI Switcher
MX8x8DVI‑Pro is cost effective solution for routing DVI signals on eight input / eight output.

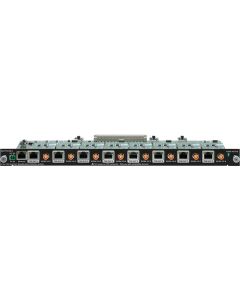

TPS Output Board with Digital Audio
MX‑TPS‑OB Output Board is a long‑distance single CAT HDBaseTTM solution with localized audio embedding and de‑embedding points.
DVI-D Single-Link Input board
The MX‑DVID‑IB Input Board has eight input channels for DVI signals.
Twisted Pair HDMI Output board for CAT5...CAT7 cables
MX-HDMI-TP-OB is an 8 channel Twisted Pair Output board for dual CAT5, CAT6 or CAT7 cables, extending HDMI and DVI signals with HDCP compliance.
4K DVI-D Input Board with Digital Audio
25G-8DVID2-A2-IB provides a fully transparent HDMI 1.4 connectivity to the latest high-end digital sources including 3D functions between the endpoints.
4K HDBaseT Output Board with Analog Audio and PoE
Featuring eight HDBaseT™ output ports, the board is compatible with the full range of Lightware TPS extenders and HDBaseT™ compliant 3rd party transmitters. The HDBaseT™ technology provides a transparent medium for all video, audio, data and control signals in line with the 25G multilayer architecture and allows for a cost effective extension solution for up to 170 meters.
4K HDMI Input Board with Analog Audio and KVM
25G-8HDMI2-A3-IB provides fully transparent HDMI 1.4 connectivity to the latest high-end digital sources including Audio Return Channel and 3D functions between the endpoints.
4K Multimode Optical Input Board
25G-8OPTM2-IB-NT is a new 4K compatible fiber optical input board for the 25G router family. These optical boards can extend up to 240m distance over multimode fiber.
4K Singlemode Optical Output Board
25G‑8OPTS2‑OB‑LC is a 4K compatible fiber optical output board for the 25G matrix family. These optical boards can extend up to a 10,000m distance using singlemode fiber technology. The OPTS technology provides a transparent medium for video, audio, Ethernet, USB KVM, RS‑232, IR and CEC data according to the 25G multilayer architecture and allows the extension
to MODEX receiver units.
25G Hybrid Matrix Frame with 120x120 Crosspoint
The 25G frames can transmit video signals up to 4K resolution, support all 3D formats, handle forward audio, transmit USB‑KVM, Ethernet, bi‑directional RS‑232/RS‑422, IR and CEC signals. The intuitive graphical user interface offers easy and user‑friendly control accessing all available features. Advanced EDID Management is included in the frame which is also HDCP compliant.
25G Hybrid Matrix Frame with 128x128 Crosspoint
The 25G frames can transmit video signals up to 4K resolution, support all 3D formats, handle forward audio, transmit USB‑KVM, Ethernet, bi‑directional RS‑232/RS‑422, IR and CEC signals. The intuitive graphical user interface offers easy and user‑friendly control accessing all available features. Advanced EDID Management is included in the frame which is also HDCP compliant.
4K HDBaseT Output Board with PoE
Featuring eight HDBaseT™ output ports, the board is compatible with the full range of Lightware TPS extenders and HDBaseT™ compliant 3rd party transmitters. The HDBaseT™ technology provides a transparent medium for all video, audio, data and control signals in line with the 25G multilayer architecture and allows for a cost effective extension solution for up to 170 meters.
Fiber optical Output board for extending DVI-D signals
MX‑DVI‑OPT‑OB provides extremely long, 2500m distance extension over a single Multimode fiber for Single‑Link DVI signals on eight channels.
4K Multimode Optical Output Board
25G-8OPTM2-OB-NT is a new 4K compatible fiber optical output board for the 25G router family.

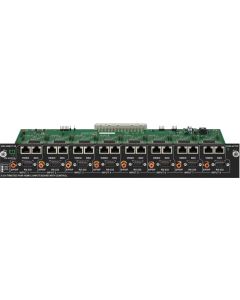

Double slot Twisted Pair HDMI Input board with control
The MXD‑HDMI‑TP‑IB double‑slot board accepts HDMI 1.3 and 3D signals over two CATx cables and provides a bi‑directional RS‑232 link to each remote source device when using compatible CATx transmitters.
