Discontinued

4K Multimode Optical Output Board

25G-8OPTM2-OB-LC is a new 4K compatible fiber optical output board for the 25G router family.

Dual-Link DVI Output board

MX‑DVIDL‑OB is a Dual‑Link DVI Output Board supporting four Dual‑Link DVI‑D connectors.

Twisted pair wallplate and floorbox transmitter

UMX‑TP‑TX100 is a versitale transmitter which provides analog and digital audio and video connectivity from a remote point over Dual CAT cable.

DVI Multimode Fiber Optical Extender

Designed for rental and fixed use, DVI‑OPT-220‑Pro series extenders can transmit DVI‑D signals over multimode fiber cables up to a range of 2500 m.

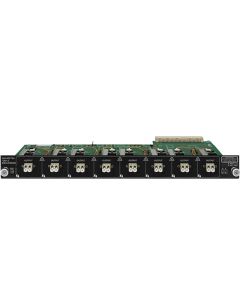

4K Singlemode Optical Output Board

25G‑8OPTS2‑OB‑LC is a 4K compatible fiber optical output board for the 25G matrix family. These optical boards can extend up to a 10,000m distance using singlemode fiber technology. The OPTS technology provides a transparent medium for video, audio, Ethernet, USB KVM, RS‑232, IR and CEC data according to the 25G multilayer architecture and allows the extension
to MODEX receiver units.

Connector Size Multi-Mode Optical Extender

DVI-HDCP-OPTM-TX90 is a small Multi Mode DVI optical extender for HDMI 1.3 signals with HDCP, for ranges up to a 300 m. Video signals are transmitted over one Multimode 50/125 fiber cable. The reinforced housing and ports of these units assure operation safety and security.

16x16 Ultra Thin and Ultra Light DVI Matrix Switcher

The MX16x16DVI‑Slim with their 1.2 inch depth is today’s smallest and lightest 16x16 DVI matrix switchers which provide routing in the most rugged environments.

Fiber optical Output board for extending DVI-D signals

MX‑DVI‑OPT‑OB provides extremely long, 2500m distance extension over a single Multimode fiber for Single‑Link DVI signals on eight channels.

Single-Link DVI Cable Extender

DVISL‑Extender is a matchbox size inline equalizers designed to extend the usable range of high performance DVI signals up to a maximum of 50 m cable length. These extenders are state‑of‑the‑ art dynamic equalizers, which perform high speed cable compensation on long DVI cables. The amount of equalization is automatically adjusted regardless of the cable length connected. These units
provide up to 40 dB of insertion loss correction at 825 Mhz.

4K HDBaseT Input Board with Analog Audio

Featuring eight HDBaseT™ input ports, this board is compatible with the full range of Lightware TPS extenders and HDBaseT™ compliant third party transmitters.

Twisted pair wallplate and floorbox transmitter

FP‑UMX‑TP‑TX100 is universal video and audio extender designed to handle digital and analog video and audio signals: VGA, YPbPr, RGB, DVI and HDMI 1.3 with analog stereo, and 7.1 HDMI embedded audio.

9x9 Ultra-Thin and Ultra-Light DVI Matrix Switcher

The MX9x9DVI‑Slim is today’s smallest and lightest 9x9 matrix switchers which provide routing in the most rugged environments.

Twisted Pair Output board for DVI over CAT5...CAT7 cables

MX-DVI-TP-OB+ is an 8 channel Output board for transmitting DVI signals over CATx cables. Pixel Accurate Reclocking and the added Advanced EDID Management is incorporated. Using an external 12 Volt DC power supply, remote powering of external TP receivers can also be achieved over the second CATx cable.

CAT5, CAT6 and CAT7 Active Twisted Pair Wall Plate extenders

WP‑DVI‑HDCP‑TP and WP‑HDMI‑TP 50 transmit HDMI or DVI‑D signals over two CATx cables. They fully support HDMI 1.3a signals with or without HDCP encryption.

25G Hybrid Matrix Frame with 128x128 Crosspoint

The 25G frames can transmit video signals up to 4K resolution, support all 3D formats, handle forward audio, transmit USB‑KVM, Ethernet, bi‑directional RS‑232/RS‑422, IR and CEC signals. The intuitive graphical user interface offers easy and user‑friendly control accessing all available features. Advanced EDID Management is included in the frame which is also HDCP compliant.

TPS extender for single CATx cable

Lightware’s HDMI‑TPS‑RX95 twisted pair HDBaseT™ extenders provide full HDCP and EDID compliance, receive universal 4K video, audio and Bi-directional RS-232 and IR up to a range of 170 m over a single CATx cable.

Rack mountable power supply for Lightware interfaces

Power supply is the heart of all electrical devices, the core of any secure and reliable system.

HDMI and HDCP Compliant Fiber Optical Output Board

MX‑HDMI‑OPT‑OB provides extremely long, 2500m distance extension over a single Multimode fiber for HDMI, DVI, VGA signals on eight channels with 4K resolution and 3D formats support.

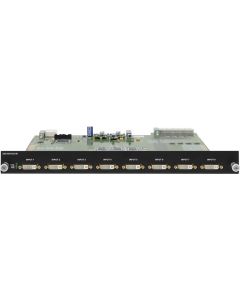

25G 4K DVI-D Output Board with Digital Audio

25G‑8DVID2‑IB provides fully transparent HDMI 1.4 connectivity to the latest high‑end digital sources including 3D between the endpoints.

Ethernet layer

All built‑in 100 Mbit Ethernet ports can be used for controlling devices such as projectors and media players or can provide Ethernet access for all connected devices from a 1 Gigabit uplink. Ethernet, as with every other Layer, can be extended over a single fiber or single CAT cable.
25G Hybrid matrix architecture is the world’s first fully compatible HDMI 1.4 matrix switcher that provides HEC and ARC functions, supports 4K resolutions and 3D formats.

CAT5, CAT6 and CAT7 Active Twisted Pair Wall Plate extenders

WP‑DVI‑HDCP‑TP and WP‑HDMI‑TP 50 transmit HDMI or DVI‑D signals over two CATx cables. They fully support HDMI 1.3a signals with or without HDCP encryption.

The Lightware SP2OPT distributes one optical signal to two identical outputs. The splitter is available with different connectors: OpticalCON, -LC, -SC, -ST.

4K HDMI Input Board with Analog Audio and KVM

25G-8HDMI2-A3-IB provides fully transparent HDMI 1.4 connectivity to the latest high-end digital sources including Audio Return Channel and 3D functions between the endpoints.

RS-232 control layer

Full duplex bi‑directional, more robust and more reliable than IR, RS‑ 232 and RS‑422 have become the standard control media for professional AV systems. The 25G Hybrid architecture is a fully transparent platform for RS‑232 and RS‑422 control signals. Ports can be linked together or handled separately, allowing any third‑party control systems to be connected.
